Hauj lwm lawm
Kev tsis
Khoom Taw Qhia
|
Yam khoom |
Log excavator |
|
Rated zog (net) |
42.4 kWm |
|
Tshuab zoo |
5500kg ib |
|
Qhov siab tshaj plaws excavation radius |
6 080mm |
Product Detail

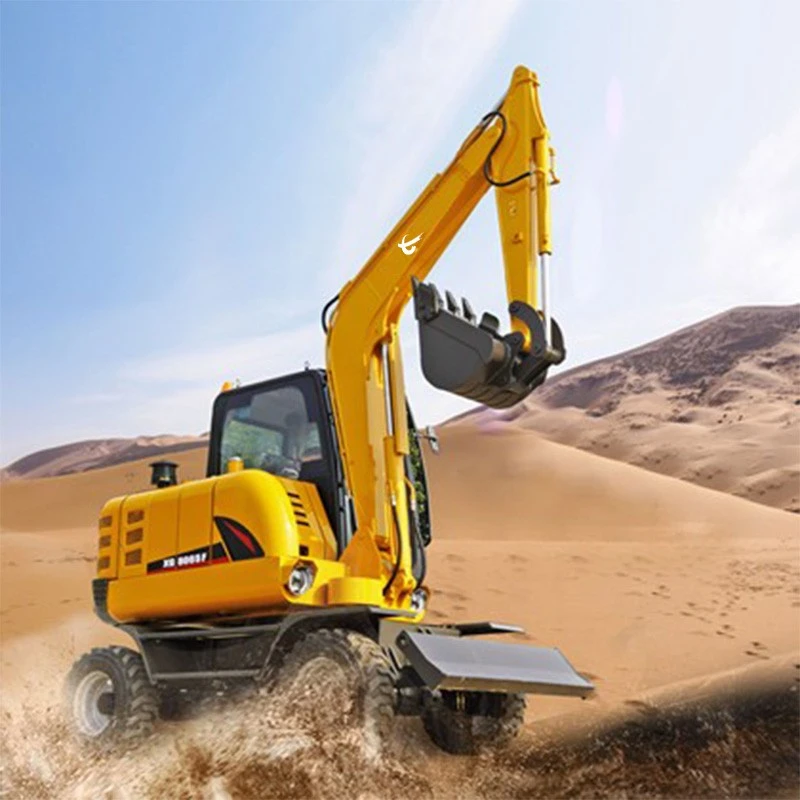

- Qhov no me me log excavator yog nruab nrog lub tshuab ua haujlwm siab, uas muaj zog thiab tuaj yeem ua tau yooj yim los ntawm ntau yam kev ua haujlwm nyuaj thiab nyuaj excavation. Txawm hais tias nws yog excavating lub ntiaj teb, crushing hard pob zeb los yog loading cov ntaub ntawv zoo, nws muaj peev xwm ua tau zoo heev ua hauj lwm efficiency. Nws cov hydraulic system tau ua tib zoo tsim thiab ua kom zoo heev los teb sai heev thiab ua haujlwm nrog cov neeg siab. Nws tuaj yeem ua tiav millimeter-theem excavation raug, ua kom cov dej ntws thiab ruaj khov ntawm kev ua haujlwm excavation. Nws tuaj yeem ua tau raws li qhov xav tau ntawm kev ua haujlwm raws li kev ua haujlwm sib txawv.
Ntsiab nta
Yooj yim taug kev system
- Siv lub log tsheb taug kev, nws muaj kev txav mus los zoo thiab yoog raws. Nws tuaj yeem hloov pauv sai ntawm qhov chaw tsim kho sib txawv kom haum rau ntau yam kev ua haujlwm nyuaj.
- Nrog lub vojvoog tig me me, nws tuaj yeem taug kev ywj pheej hauv qhov chaw nqaim, ua kom muaj txiaj ntsig zoo rau kev ua haujlwm.
- Lub log tsim kuj txo qhov kev puas tsuaj rau hauv av, ua rau nws tsim nyog rau cov xwm txheej nrog kev tiv thaiv hauv av siab xws li kev tsim kho hauv nroog thiab kev tsim kho.
| Qauv | XG-94 | |
| A | Qhov siab tshaj plaws excavation radius | 6 080mm |
| B | Kev khawb qhov tob tshaj plaws | 3 470mm |
| C | Qhov siab tshaj plaws ntsug khawb qhov tob | 0000 hli |
| D | Kev khawb qhov siab tshaj plaws | 6 012mm |
| E | Qhov siab tshaj unloading | 4 335mm |
| F | Yam tsawg kawg tig vojvoog ua ntej | 2 236mm |
| G | Tag nrho cov log tsheb dav | 1 905mm |
| H | Tag nrho qhov dav ntawm lub Upper rotary platform | 0000 hli |
| L | Yam tsawg kawg nkaus hauv av clearance | 280 hli |
| K | Tag nrho qhov siab ntawm cab | 2 943mm |
| L | Zuag qhia tag nrho ntev | 6 102mm |
| M | Bulldozer tawm lub kaum sab xis | 30 degree |
| 0 | Qhov siab tshaj lifting tus nqi ntawm bulldozer hniav | 4 26mm |
| P | Qhov siab tshaj plaws poob ntawm bulldozer hniav | 212mm ib |
| N | Wheelbase | 2100 hli |
| Bucket khawb quab yuam (ISO) | 44 KN | |
| Digging quab yuam ntawm thoob caj npab (ISO) | 28 KN | |
| ● Nrog kev tsim kho thev naus laus zis, peb cov khoom tsim thiab cov khoom siv yuav hloov mus ntxiv yam tsis muaj ntawv ceeb toom; yog tias muaj kev tsis ntseeg, qhov kev lees paub tshwj xeeb ntawm peb cov kev muag khoom thoob ntiaj teb yuav tsum yeej. |
||
Intelligent tswj system
- Qhov no me me log excavator yog nruab nrog ib tug advanced ntse tswj system uas tso cai rau kom meej meej tswj cov khoom tseem ceeb xws li cav thiab hydraulic systems.
- Cov neeg ua haujlwm tuaj yeem nkag siab txog cov xwm txheej ntawm cov cuab yeej siv hauv lub sijhawm tiag tiag los ntawm lub siab txhais lub vijtsam, suav nrog cov ncauj lus kom ntxaws xws li lub cav ceev, hydraulic roj kub, lub sijhawm ua haujlwm, thiab lwm yam, thiab tuaj yeem kho qhov tsis zoo thiab kuaj xyuas qhov tsis raug.
- Cov kev tswj xyuas ntse kuj tseem muaj lub zog txuag hluav taws xob uas tau hloov kho lub cav lub zog raws li kev ua haujlwm, txo cov roj noj.
Ib puag ncig kev ua haujlwm yooj yim thiab nyab xeeb
- Lub tsheb tavxij ntawm lub log me me no yog tsim kom dav thiab xis nyob, nrog rau kev pom dav dav, muab qhov chaw ua haujlwm zoo rau tus neeg teb xov tooj.
- Lub rooj zaum tuaj yeem hloov kho ntau yam kev qhia, ua raws li ergonomic cov qauv, uas tuaj yeem txo qhov qaug zog ntawm tus neeg teb xov tooj thaum ua haujlwm.
- Lub excavator kuj tau nruab nrog ntau yam khoom siv kev nyab xeeb, xws li lub rooj zaum, guardrails, thiab cov khoom siv thaum muaj xwm ceev, kom muaj kev nyab xeeb ntawm tus neeg teb xov tooj.
Technical Specifications
| Qauv | XG-94 | ||
| Cav | Rated zog | KW | 42.4 |
| Rated ceev | r / min | 2000 | |
| Maximum Torque | N. m | 222.5 | |
| Tshuab kev ua tau zoo tsis muaj |
Tshuab hnyav | Kg | 5500 |
| Lub thoob muaj peev xwm | m³ | 0.18 | |
| Main twj | 0 | ||
| Steering twj tso kua mis | 0 | ||
| Pilot twj | 0 | ||
| Tsav lub log | 0 | ||
| Iav hloov qauv | 0 | ||
| Main twj tso kua mis siab tshaj plaws ntws | (L / Min) | 157 | |
| Qhov siab tshaj plaws ntawm lub twj tso kua mis ua ntej | (L / Min) | 0 | |
| Tyre qauv | 12-16.5 | ||
| Kev tsav tsheb siab tshaj plaws | Km/h | 25 | |
| Gradeability | degree | 30 | |
| Kev sib hloov ceev | (rpm) | 10.5 | |
| Yam tsawg kawg nkaus tig radius | mm | 1715 | |
| Pem hauv ntej qag viav vias ntau | ±5 | ||
| Txoj kev nres | ntub nres choj | ||
| Roj tank peev xwm | L | 120 | |
| Hydraulic roj tank peev xwm | L | 75 | |
| ● Nrog kev tsim kho thev naus laus zis, peb cov khoom tsim thiab cov khoom siv yuav hloov mus ntxiv yam tsis muaj ntawv ceeb toom; yog tias muaj kev tsis ntseeg, qhov kev lees paub tshwj xeeb ntawm peb cov kev muag khoom thoob ntiaj teb yuav tsum yeej. |
|||
Technical Parameters
| Qauv | XG-94 | ||
| Cav | Rated zog | KW | 42.4 |
| Rated ceev | r / min | 2000 | |
| Maximum Torque | N. m | 222.5 | |
| Tshuab kev ua tau zoo tsis muaj |
Tshuab hnyav | Kg | 5500 |
| Lub thoob muaj peev xwm | m³ | 0.18 | |
| Main twj | 0 | ||
| Steering twj tso kua mis | 0 | ||
| Pilot twj | 0 | ||
| Tsav lub log | 0 | ||
| Iav hloov qauv | 0 | ||
| Main twj tso kua mis siab tshaj plaws ntws | (L / Min) | 157 | |
| Qhov siab tshaj plaws ntawm lub twj tso kua mis ua ntej | (L / Min) | 0 | |
| Tyre qauv | 12-16.5 | ||
| Kev tsav tsheb siab tshaj plaws | Km/h | 25 | |
| Gradeability | degree | 30 | |
| Kev sib hloov ceev | (rpm) | 10.5 | |
| Yam tsawg kawg nkaus tig radius | mm | 1715 | |
| Pem hauv ntej qag viav vias ntau | ±5 | ||
| Txoj kev nres | ntub nres choj | ||
| Roj tank peev xwm | L | 120 | |
| Hydraulic roj tank peev xwm | L | 75 | |
| ● Nrog kev tsim kho thev naus laus zis, peb cov khoom tsim thiab cov khoom siv yuav hloov mus ntxiv yam tsis muaj ntawv ceeb toom; yog tias muaj kev tsis ntseeg, qhov kev lees paub tshwj xeeb ntawm peb cov kev muag khoom thoob ntiaj teb yuav tsum yeej. |
|||
